Case study Wireless surveillance
Installed by Trinity Security for a waterfront community in Jacksonville, Florida. Wireless links reduced the need for expensive cabling. Follow the video from the perimeter to the security station.
The design approach
Wireless video links replace long data runs across the property. Local power and short cable connections are still needed at the devices.
Perimeter cameras need to reach the security station. A cable route to every location would cross established lawns, paths, and paving.
Building-mounted access points receive nearby camera video. A central radio hub gathers the feeds, and a point-to-point bridge carries them to the security station.
From the field

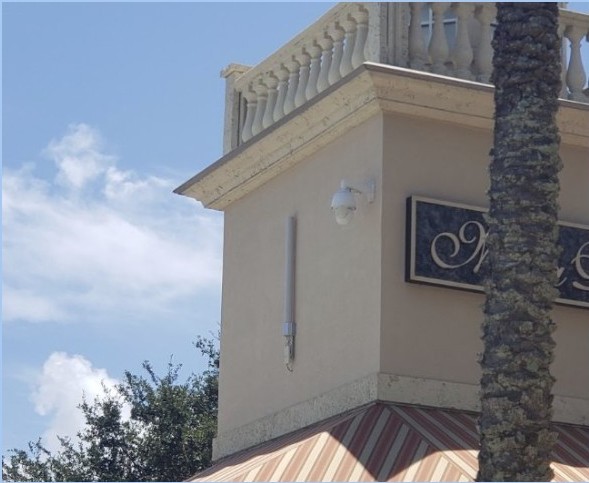

The source case places radio equipment high on the buildings, beneath the roofline. The layout brings the access points into direct view of the central hub.
Select an access point to see its position in the schematic, then follow the video path to the security station.
